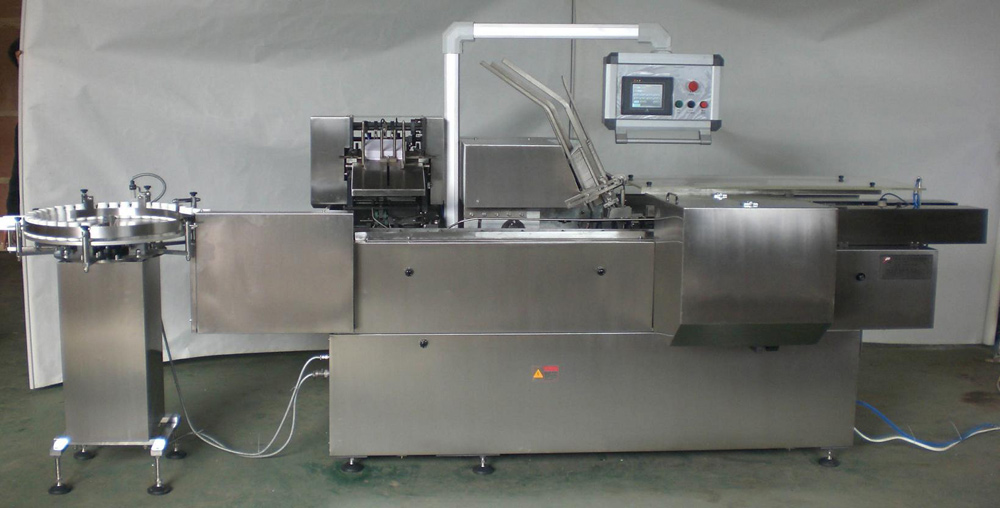

RSAC-100/200 AUTOMATIC CARTONING MACHINE
AUTOMATIC CARTONING MACHINE
IT』S SUITABLE PACKING PROCESSING ,BLISTER,COSMETIC BOTTLE,PLAYING CARD AND OTHER RELATED SIMILAR PRODUCT CONTENT WITH COMPACT AUTO LEAFLET FOLDER,BOX LOADING,BATCH CODE EMBOSSING AND AUTO SEALING(OPTIONAL HOT GLUE SEALING).IT ADAPT PLC CONTROL,PHOTOELECTRICITY SUPERVISING TO COORDINATE WITH EVERY PART. AUTOMATIC STOP AND TROBLE DISPLAYING WHEN MACHINE RUNNING IN ORDER TO SOLVE TROUBLES IN TIME
- FEATURE:
- REJECTION AUTOMATICALLY,IF NO PRODUCT,NONSTANDARD HEIGHT OR LACK OF LEAFLET
- STOP AUTOMATICALLY,IF INCORRECT POSITION OF PRODUCT,INTO CARTON
- 3. STOP AUTOMATICALLY,IF NO CARTON,OR OUT OF LEAFLETS CONTINUOUSLY
- EASY CHANGE DIFFERENT PRODUCT.
- PROTECTING AUTOMATICALLY FOR OVERLOADING
- PLC AND TOUCH SCREEN AUTOMATICALLY DISPLAYING DEVICE FOR SPEED AND FINISHED PRODUCT COUNTING
| Model | RSAC-100 | RSAC-200 |
| Power supply | 380V/50Hz three phase 2.5kw | |
| Product capacity | 50-100bpm | 120-200bpm |
| Air consumption | 20m3/H(0.6bar) | 60m3/H(0.6bar) |
| Box specification | min.50Lx20Wx14Hmm max.200Lx80Wx50Hmm |
50Lx20Wx12Hmm 220Lx90Wx70Hmm |
| Box quality | 250-350g/m2 | |
| Leaflet quality | 50-60g/m2 | |
| Leaflet specification min 100Lx100Wmm-max.260Lx190Wmm | ||
| Dimension | 3250Lx1450WxH1550mm | 4010Lx1200Wx1700Hmm |
| Weight | 1200kgs | 2500kgs |
