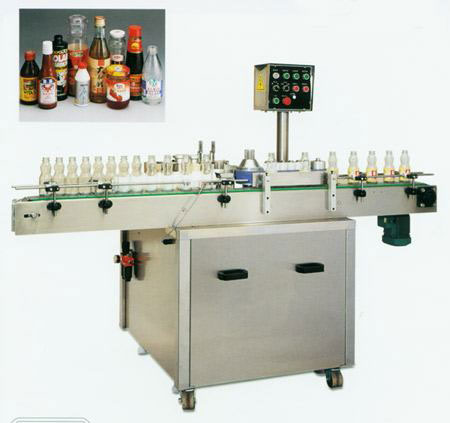

Glue type labeler RGTL-60

Glue type labeler RGTL-60

Characteristics:
It is very troublesome to replace eachtime when the specification of the labels differ, in order to reduce this kind of inconvinience, we have develped this automatic labelling machine which only requires a minor adjustment and replacements of a few parts to solve the above mentioned trouble. It saves your production cost and is very easy to operate. It comes up with a fast and unified production to ensure a refined outlooks of the bottles to be labelled.Machine cover and conveyor plate are made of stainless steell, so that there will be no rusty and you can be assured of its durability and a clean working machine.

RGTL-60
RGTL-60

Specifications:
Models RGTL-60M RGTL-60ML RGTL60-MX
Bottle dia 16-40mm 30-80mm 50-120mm
Lable Size 20-80Hx50-100W 40-110Hx50-130W 40-110Hx100-360W
Speed 40-60 40-60 30-50
Motor Power 1/2 & 1/4 HP 1/2 & 1/4 HP 1/2 & 1/4 HP
Source Power 220/single phase V
50/60Hz
220/single phase V
50/60Hz
220/single phase V
50/60Hz
King of Pasde Resin Resin Resin

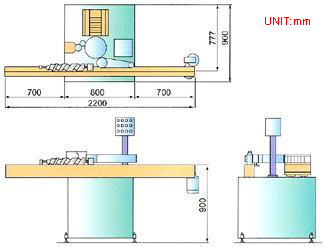

Machine Dimesion
LxWxH(mm)
2200X900X1500 2200X900X1500 2200X900X1500
Machine Weight 500kg 500kg 500kg
Air press 5-6kgs 5-6kgs 5-6kgs
Air Use 10 L/min 10 L/min 10 L/min
   Company information
  • Richmech Industrial Co.,Ltd.
  • TEL : 886-2-2502-2949
  • FAX : 886-2-2505-0192
  • Contact Person : Allen Chen
  • richmechids@yahoo.com.tw
