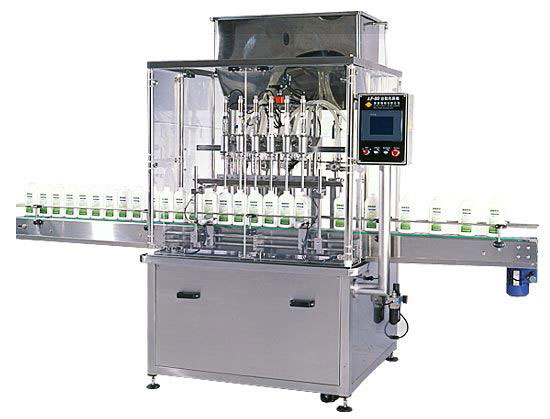

Shampoo filling/cap sealing machine RLSC-50
- Adopt touch screen controller to key in fill volume and speed, need no mechanical adjustment.Fill volume control by precise Ball Screw of high accuracy.
- Parts of Filling Cylinder contacting liquid made of stainless steel treated with hard chrome for abrasion resistance and without contamination.
- Filling Cylinder easy disassembly for cleaning work.
- Bottle feeding, separated & positioning control by adjustable air cylinders.
- Filling Nozzles drive by air cylinder moving up & down during filling to prevent liquid forming.
- Filling Nozzle』s upmost & lowest position adjustable by height adjust device with figure for operation record.
- Air cylinders of filling nozzle and reversing valve act simultaneously.
- Machine stop filling operation if there is no bottle. Adopt bottle bottom filling.
- Equip with drip reservoir, height adjustable device with figure for operation record.
- Equip with 175L product tank.
- Equip with speed adjustable conveyor, can operate alone or connect with Auto Capping Machine and Auto Labelling Machine.
- Meet G.M.P requirement.
Application:
Pharmaceutical, Beverage, Soy Sauce, Shampoo & Chemical factory, especially for high viscosity liquid filling.
Pharmaceutical, Beverage, Soy Sauce, Shampoo & Chemical factory, especially for high viscosity liquid filling.
Specifications:
| Model | RLSC-50 SS | RLSC-50 SM | RLSC-50 SL |
| Fill volume | 200 ~ 600 cc | 600 ~ 2000 cc | 2000 ~ 5000cc |
| Capacity | 60-80 B/min | 30-60 B/min | 8-16 B/min |
| Fill nozzle | 8 pc | 6 pc | 4 pc |
| Power | 2.25HP | 2.25HP | 2.25HP |
| Power source | 220V, 1∮, 50 / 60Hz | 220V, 1∮, 50 / 60Hz | 220V, 1∮, 50 / 60Hz |

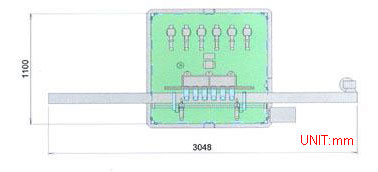

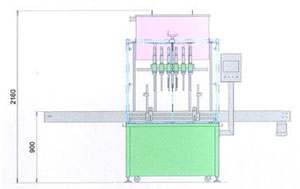

| Machine dimension | 3048L×1100W×2160H m/m | 3048L×1100W×2160H m/m | 3048L×1100W×2160H m/m |
| Weight | 900 kg | 900 kg | 900 kg |
| Compress air (self-provided) | 6 kg/cm | 6 kg/cm | 6 kg/cm |
| Air consumtion | 200 L/min | 200 L/min | 200 L/min |
