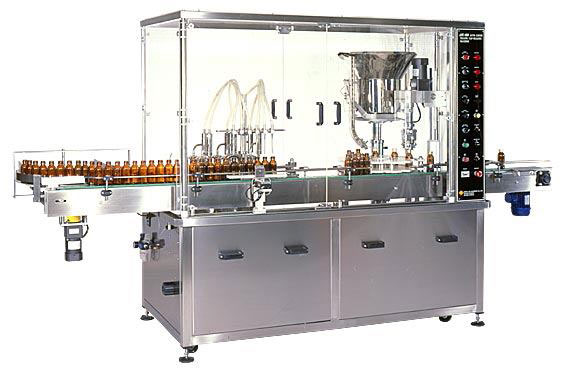

oral liquid filling/cap sealing machine RLFC-50

oral liquid filling/cap sealing machine RLFC-50

  • A desired capacity can be quickly and precisely acquired since a singleaxis adjusting piston is adopted in this machine.
  • Parts of the piston is contacting the liquid is made of stainless steel trated with hard chrome to enforce the surface hardness.
  • Bottle delivery line, positioning of the bottle and capping operation are motivated by air cylinder.
  • Automatic cap sedling is designed for those bottle mouths to be sealed wiht aluminum cap and/or spiral-type cap.
  • It is also possible for sealing with plastic cap and the sealing requirements can be adjusted according to the materials of the cap.
  • A safety equipment is attached to this machine, which will automatically stop its operation in case of any fell down of bottle,improper positioning of the bottel to be capped, or of the manual hand wheel is intruded.
  • The soft device permits to reduce the friction loss of machines.thus to prolong the service life of this machine. When specification of the cap is changed, only to replace the star wheel required, the height can be also adjusted according to that of the bottles to be capped.
  • It is very easy to wash and clean.
  • A stepless speed varlation motor is used, the operation speed can be adjusted as desired.
  • It operates independently, or it can be connected with the automatic labelling machine for a consisted intergrated automatic production.
  • Liquid Automatic filling Cap Machine is driver by piston motion.

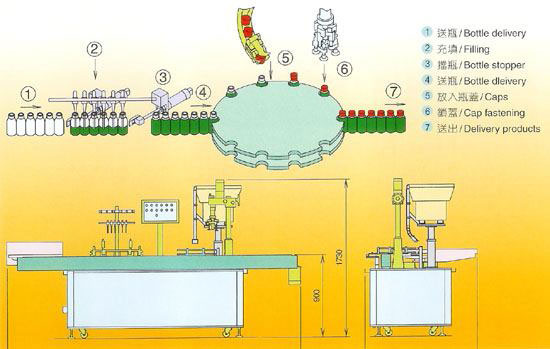

  • All process of the delivery of bottle, positioning of the bottle, filling tube, and sealing are automatiically operated and meet with the G.M.P. requirements.

RLFC-50

Specifications:
Models RLFC-50 RLFC-50-M RLFC-50-L
Filling Capacity 5cc-60cc 30cc-150cc 100cc-500cc
Speed 30-50 30-50 15-30
Motor Power 1HP & 1/4HP 1HP & 1/4HP 1HP & 1/4HP
Source Power 220V 50-60HZ
single phase
220V 50-60HZ
single phase
220V 50-60HZ
single phase
Machine Dimesion L3205×W1220×H1730
mm
L3205×W1220×H1730
mm
L3205×W1220×H1730
mm
Machine Weight 1240kg 1220kg 1240kg
Airpress(Self-Provided) 5-6kgs 5-6kgs 5-6kgs
Air consumption 200 L/min 200 L/min 200 L/min
   Company information
  • Richmech Industrial Co.,Ltd.
  • TEL : 886-2-2502-2949
  • FAX : 886-2-2505-0192
  • Contact Person : Allen Chen
  • richmechids@yahoo.com.tw
