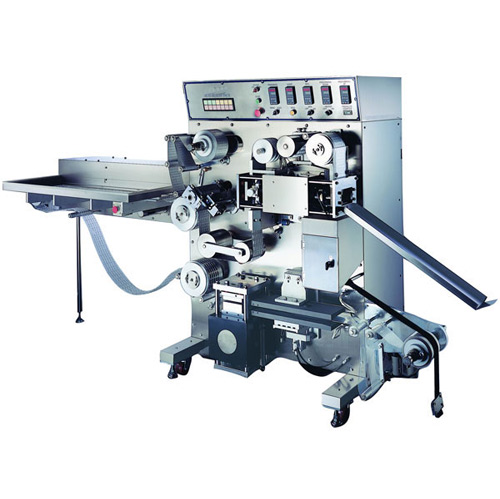

BLISTER PACK MACHINE RBM-20/RBM-40
MANUAL BLISTER PACK MACHINE
FEATURE:
- blister packing machine RBM-20/RBM-40 is specially designed for the PVC/ALU product for the purpose of better preservation and prevention of light rays.
- Compact size with all function and fast production
- Compressed air forming creates equivalent blister pocket
- Continuous motion offers best filling condition
- Equipped with trouble detection system which displays where the trouble is.
- The machine adopts a no waste trimming method to save material
- Blister pack dimensions:285 x 135 x 205 (cm) / 285 x 155 x 235 (cm)
| Model | RBM-20 | RBM-40 |
|---|---|---|
| Output | Max. 130 blisters/min | Max. 240 blisters/min |
| Forming film thinkness | 0.25~0.4 mm(PVC) | 0.25~0.4 mm(PVC) |
| Film/foil width | Max. 140mm | Max. 265mm |
| Forming depth | Max.12mm | Max. 12mm |
| Formed area available | Max. 146 x125mm | Max. 146 x250mm |
| Reel diameter PVC film | Max.O500mm | Max.O500mm |
| Reel diameter ALU foil | Max.O320mm | Max.O320mm |
| Reel core | O70~O76mm | O70~O76mm |
| Power supply | 220V/380V/415V 50Hz/60Hz, 3 phase |
220V/380V/415V 50Hz/60Hz, 3 phase |
| Power consumption | 6~7 KW | 6~7 KW |
| Compressed air consumption | 6 KG/CM2(bar), 150L/min | 6 KG/CM2(bar), 210L/min |
| Cooling water consumption | 27~31L/HR, 15°C~20°C | 27~31L/HR, 15°C~20°C |
| Forming materials | ALU/ALU,PVC/ACLAR,PET PVC,PP,PVC/PVDC |
ALU/ALU,PVC/ACLAR,PET PVC,PP,PVC/PVDC |
| Foil materials | ALU/HARD,ALU/SOFT ALU/PAPER,ALU/POLYESTER,PP |
ALU/HARD,ALU/SOFT ALU/PAPER,ALU/POLYESTER,PP |
| Machine dimension (LxWxH) | 260 x 105 x 190 (cm) | 260 x 135 x 220 (cm) |
| Packing size | 285 x 135 x 205 (cm) | 285 x 155 x 235 (cm) |
| Net Weight | 1000 kgs | 1000 kgs5 |
| Gross Weight | 1400 kgs | 2400 kgs |
